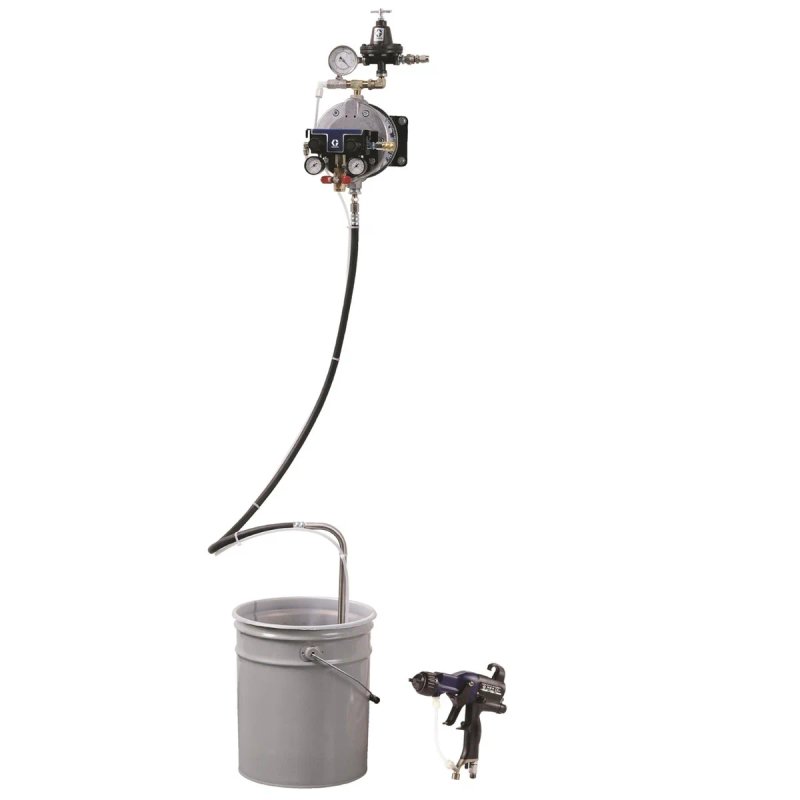

Graco 233749 Triton Alum Spray Package, Wall, 60 psi Fluid Regulator, Pro Xp60

Manufacturer Part Number: 233749

Triton Alum Spray Package, Wall, 60 psi Fluid Regulator, Pro Xp60 Electrostatic Gun, Air & Fluid Hoses. Part # 233749.

Product Status:

Available

Category:

Manufacturer:

Graco Triton Pro Xp
Graco 233749 Triton Alum Spray Package, Wall, 60 psi Fluid Regulator, Pro Xp60

Description:

Triton Alum Spray Package, Wall, 60 psi Fluid Regulator, Pro Xp60 Electrostatic Gun, Air & Fluid Hoses

Triton® air operated diaphragm pump with Pro XpTM electrostatic air spray gun brings affordable, fine finish spraying to wood and metal applications.

  • Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.
  • Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.
  • Rugged, aluminum pump handles a wide variety of fluids.
  • Pro Xp electrostatic air spray gun delivers high transfer efficiency when spraying standard or specialty coatings.
  • With a maximum voltage output of 60 kV, the electrostatic applicator meets strict requirements for spray pattern, mechanical and electrical performance.

Graco part number 233749. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.

Part of the Graco Triton Packages line under Graco Spray Packages. Manufacturer page: 233749 on Graco.

What makes 233749 different

The 233749 is a wall-mounted 1:1 Triton air-spray package with an 8.5 gpm (32 lpm) maximum flow and 100 psi maximum working pressure. It includes a Pro Xp 60 kV Standard gun, a 25 ft air hose, a 25 ft fluid hose, a regulator, and an applicator, and it weighs 18.96 lb.

Features:

Technical Specifications

Part Number233749
ApplicationMetal
Compatible MaterialCARC, Enamel, Epoxy, High Solids, Latex, Lacquer, Metallics, Stain, Single-Component, Solventborne Paints, Solventborne, Varnish Primer
Fluid Inlet Size (in)3/4
Fluid Inlet Thread TypeNPT
Fluid Outlet Size (in)3/8
Fluid Outlet Thread TypeNPT
Gun Included1
Gun ModelPro Xp 60 kV Standard
Gun TechnologyElectrostatic
Gun TypeElectrostatic
Includes25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator
Maximum Air Inlet Pressure (psi)100
Maximum Flow Rate (GPM)8.5
Maximum Working Pressure (psi)100
ModelTriton
Mount LocationWall Mount
Mount TypeWall Mount
Power SourceAir
Pressure TypeLow Pressure
Product TypeSpray Package
Pump Ratio1:1
Pump TypePneumatic Diaphragm Pump
Series308
Spray TypeElectrostatic
Sprayer TypeAir Spray Electrostatic
Technology TypeAir Spray
TypeAir-Powered Sprayer
Weight (lb)18.96
Maximum Flow Rate (L/min)32
Maximum Working Pressure (kg/cm²)7.03

Specifications as published by Graco for part 233749.

Where to Buy Graco 233749 Triton Alum Spray Package in Michigan, Indiana and Ohio

Fluid Transfer Systems, Inc. (FTS) is an authorized Graco distributor and Authorized Repair & Service Center in Novi, Michigan. Manufacturers in Michigan, Indiana and Ohio call FTS for the Graco 233749 Triton Alum Spray Package, Wall, 60 psi Fluid Regulator, Pro Xp60. Third-generation family owned since 1971, FTS serves all three states from one location at 22545 Heslip Drive, Novi, MI 48375.

From Novi, FTS also serves Graco customers in Indiana and Ohio. See who to call for paint finishing equipment in Michigan, Indiana and Ohio.

For pricing and availability, call (248) 348-6700 (Monday to Friday, 8 AM to 5 PM Eastern) or request a quote.

309303EN-Y TRITON 1:1 DIAPHRAGM PUMP INSTRUCTIONS-PARTS
309304R TRITON 1:1 SPRAY PACKAGES INSTRUCTIONS-PARTS
309305H OPERATION MANUAL FOR TRITON 1:1 PUMP ENGLISH FRENCH SPANISH PORTUGUESE
309306A 245081 AGITATOR KIT SST
307212EN-ZAK FLUID PRESSURE REGULATORS INSTRUCTIONS-PARTS LIST
308325E FLUID PRESSURE REGULATORS
309292W PRO XS3 AND PRO XS4 MANUAL ELECTROSTATIC AIR SPRAY GUNS INSTRUCTIONS
312414U AIRPRO PRESSURE FEED AIRSPRAY GUN INSTRUCTIONS
