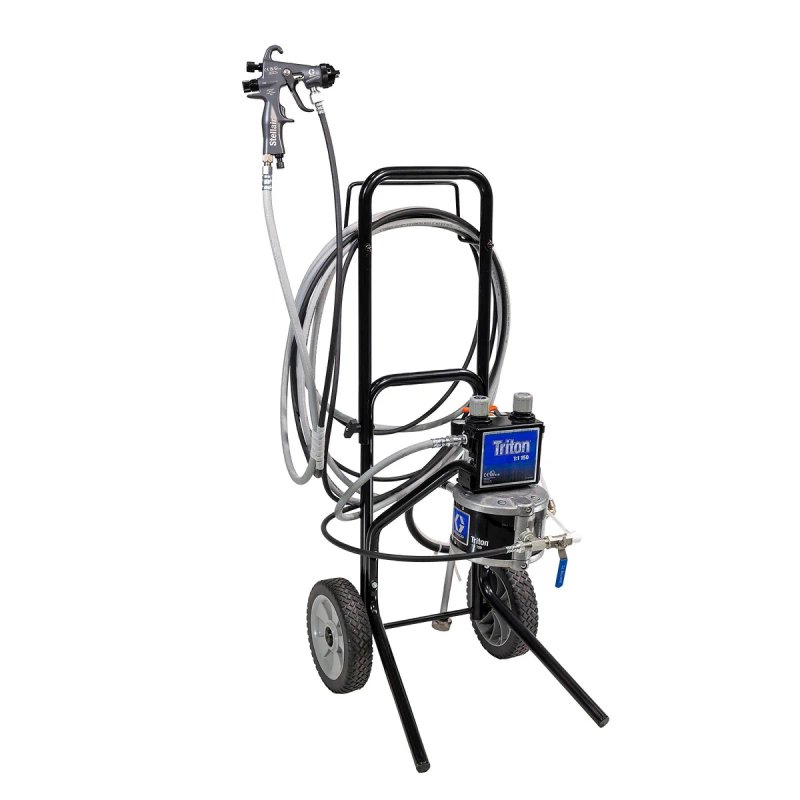

Triton SST Spray Package, Cart, Suction, Air & Fluid Hoses, Stellair Conventional Gun .055 in (1.4 mm) Nozzle for Metal Applications. Part # 233483.
Triton SST Spray Package, Cart, Suction, Air & Fluid Hoses, Stellair Conventional Gun .055 in (1.4 mm) Nozzle for Metal Applications. Part # 233483.
Product Status:
Category:
Manufacturer:
Triton air operated diaphragm pump with Stellair air spray gun brings affordable, fine finish spraying to wood and metal applications.
Graco part number 233483. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.
Part of the Graco Triton Packages line under Graco Spray Packages. Manufacturer page: 233483 on Graco.
| Part Number | 233483 |
|---|---|
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxy, High Solids, Latex, Lacquer, Metallics, Stain, Single-Component, Solventborne Paints, Solventborne, Varnish Primer, Waterborne |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Stellair |
| Gun Technology | Conventional |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Model | Triton |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | Conventional |
| Type | Air-Powered Sprayer |
| Weight (lb) | 36 |
| Maximum Flow Rate (L/min) | 32 |
Specifications as published by Graco for part 233483.
