The Binks 37-2000 is a 15 GPM stainless steel bag filter vessel with 1 in. sanitary fluid connections, a 304L stainless steel lid and a 6 in. stainless steel basket.
The Binks 37-2000 is a 15 GPM stainless steel bag filter vessel with 1 in. sanitary fluid connections, a 304L stainless steel lid and a 6 in. stainless steel basket.
Product Status:
Category:
Manufacturer:
The Binks 37-2000 is a 15 GPM stainless steel bag filter vessel with 1 in. sanitary fluid connections, a 304L stainless steel lid and a 6 in. stainless steel basket.
The housing lid is secured with three eye bolts, eye nuts and clevis pins, and the vessel includes a bleed tube with ball valve plus a ball valve on the fluid outlet. A 304L stainless steel leg assembly (18 in. tall, 7 in. diameter bolt circle) is available separately for floor mounting.
Binks recommends using a pipe sealant that does not contain silicone at assembly.
Need the 1 in. NPT version? See the Binks 37-2001 bag filter vessel.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Part Number | 37-2000 |
|---|---|
| Type | Bag filter vessel |
| Flow Rate | 15 GPM |
| Fluid Inlet / Outlet | 1 in. sanitary |
| Lid | 304L stainless steel |
| Basket | 6 in. stainless steel |
| Housing Body | 37-2008 (1 in. sanitary) |
| Used with | Binks Maple / Smart pumps |
| Leg Assembly (optional) | 37-2017, 304L stainless steel, 18 in. height, 7 in. diameter bolt circle |
| Assembly Note | Use a pipe sealant that does not contain silicone |

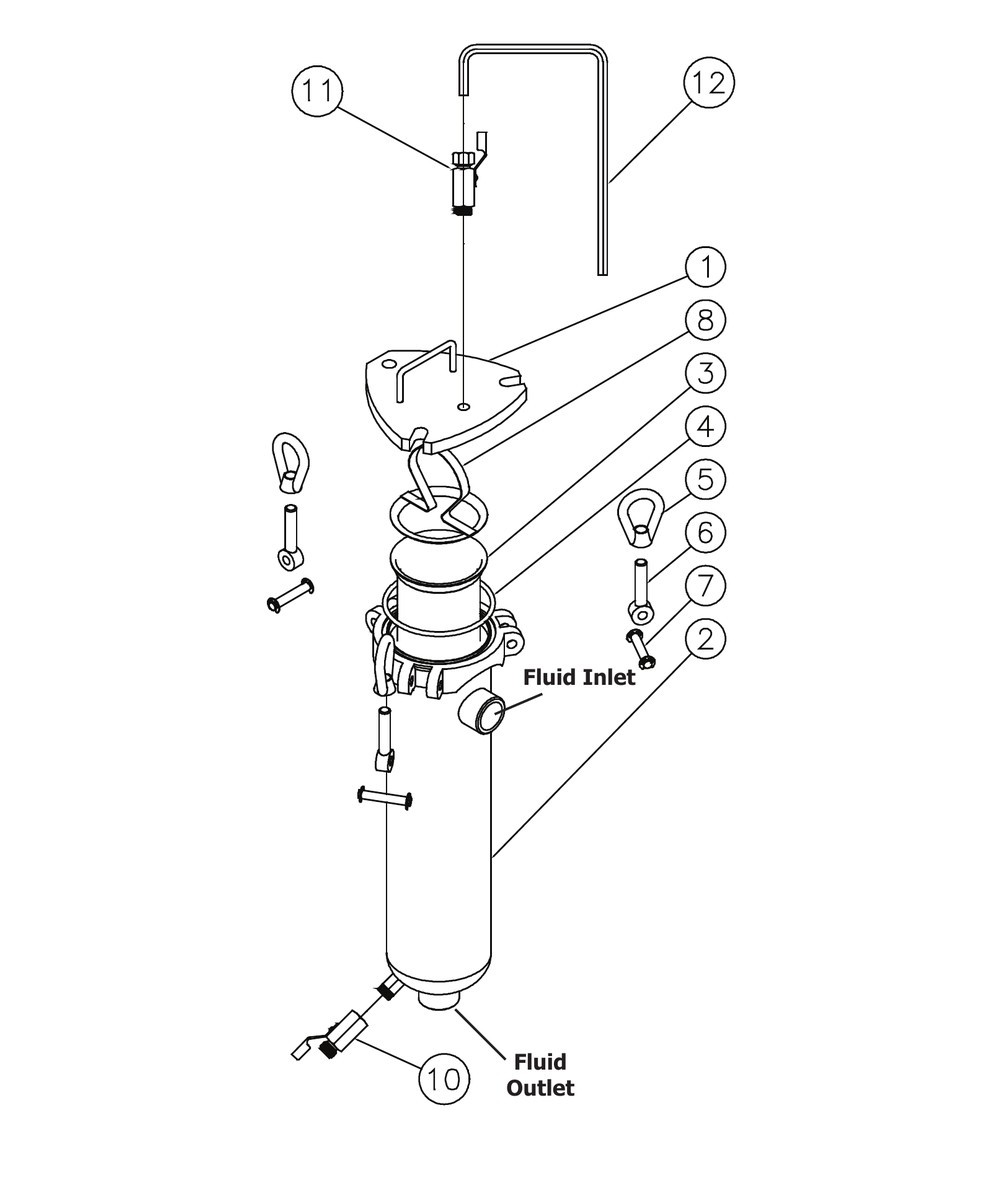

| Part # | Description | Qty |
|---|---|---|
| 37-2008 | Housing body, 1 in. sanitary | 1 |
| 37-2006 | 304L stainless steel lid | 1 |
| 37-2010 | 6 in. stainless steel basket | 1 |
| 37-2012 | Gasket | 1 |
| 37-2016 | 6 in. bag retainer (sold separately) | 1 |
| 37-2004 | Eye nut | 3 |
| 37-2005 | Eye bolt | 3 |
| 37-2003 | Clevis pin assembly | 3 |
| VA-528 | Ball valve | 1 |
| 37-2013 | Ball valve | 1 |
| 37-2015 | Bleed tube | 1 |
| 37-2017 | 304L stainless steel leg assembly (sold separately) | 1 |
Filter bags: Binks does not list a filter bag part number for this vessel. Contact FTS for compatible 6 in. filter bags in the micron rating your material needs.
